1. New CONTACT FREEZER |
|
|
|
Model |
|
: BW600BF |
|
|
|
Year Made |
: Custom made to order |
|
|
|
|
|
|
|
|
|
|
Bitmap
|
Model |
BW 600 BF |
|
Item |
|
|
|
|
|
|
Evaporating Temp. |
(20° C - -50° C) |
|
Product |
|
SHRIMP |
|
Tray Size |
200 x 300 mm |
|
Freezing Capacity |
610 Kgs |
|
External Dimension |
3200 x 1244 x 1810 mm (H) |
|
Plate Dimension |
2387 x 1016 (D) |
|
Compressor / Type |
BITZER (Made in Germany) |
|
Power (Kw) |
22 KW |
|
Total Output (HP) |
30 HP (2 Stage) |
|
Total Electrical (maximum) |
|
24 - 45 Amp |
|
Compressor Duration's |
70% - 80% Loading Power |
|
Voltage |
|
380 V / 3 Phase / 50 Hz |
|
Refrigerant |
R502 / R22 / R 507 |
|
Cooling Tower |
25 RT |
|
Piping & Motor Pump |
2" x 2.5 HP Water Pump |
|
Fan Motor Circulation |
2 x 1.2 HP |
|
Effecting Freezing Quantity |
10 Stations |
|
Station Clearance |
125 mm |
|
Freezing Plate Material |
Alluminium Alloy |
|
Freezing Temperature |
(- 15°C - -55°C) |
|
Insulation (Thickness) |
100 mm |
|
Freezing time |
3 - 3.5 Hours |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
A ) Plate Freezer Structure of parts details as below : |
|
|
1 |
1 Unit |
Freezing Box |
: High Density PU Insulation inject around |
|
|
|
|
|
(100 mm - thickness PU) |
|
|
|
|
|
|
|
|
2 |
1 set |
Bitzer Compressor semi Hermatic two stage compressor |
|
|
|
Reciprocating compressor on mounting on steel base complete with: |
|
|
|
- |
Suction and Discharge Stop valve |
|
|
|
- |
Oil Separator with automatic oil recovery system |
|
|
|
- |
Pressure gauge panel |
|
|
|
|
- |
Pressure switches |
|
|
|
|
|
- |
Capacity control solenoid |
|
|
|
|
|
|
|
|
|
3 |
1 unit |
2 in 1 / Shell & Tube water cooled Liquid Receiver Iron Tank complete with: |
|
|
|
- |
Dual safety valve |
|
|
|
|
|
- |
Air Purging valve |
|
|
|
|
|
- |
Drain valve |
|
|
|
|
|
|
|
|
|
|
4 |
1 set |
Cooper Piping & Fitting consisting of : |
|
|
|
Pipe |
|
: Standard Copper Pipe according to sizing needs |
|
|
|
Pipe Insulation |
: Aerofoam sheet or tube clapped at our layer copper tube |
|
|
|
|
|
|
|
|
5 |
1 set |
25 RT Cooling Tower or equivalent |
|
|
|
|
Centrifugal monobloc pump type or equivalent |
|
|
|
Fans motor |
: 2 H.P. motor c/w fan blades & gards. |
|
|
|
Condensor Pump |
: 2.5 HP motor water Pump c/w 2" PVC Piping and Hand Valve |
|
|
|
|
|
|
|
6 |
1 lot |
Refrigerant Safety Control |
|
|
|
|
High/ Low pressure gauge with liquid type , Oil separator, Oil trap system, Sight Glass, Hand Valve, Safety Valve, Service Valve |
|
|
Danfoss Product : |
EVR Electrical On/Off Solenoid Valve |
|
|
|
(Denmark Made) |
Expansion Valve Injection 1 Ø pcs |
|
|
|
|
|
KP15 Liquid High / Low Pressure Switch safety control |
|
|
|
|
|
MP54 Oil Differential Pressure Switch safety control |
|
|
|
|
|
DCR Filter drier with interchangeable solid core |
|
|
|
|
|
|
|
|
B ) Electrical Centralize Main Switch Control Panel Specification Detail as Belows: |
|
|
|
|
|
|
|
|
1 |
1 set |
60 Amps Electrical Main circuit breaker |
|
|
|
Starter Circuit breaker set as below : |
|
|
|
|
- |
30 H.P.Starter for compressor motor branch circuit breaker |
|
|
|
- |
2.5 H.P Starter for Condenser water pump motor |
|
|
|
- |
2 H.P Starter for Cooling Tower Fan motor |
|
|
|
- |
1 H.P Starter for Circulation Fan motor |
|
|
|
|
|
|
|
|
2 |
1 set |
Quality Pilot Indication Lamps |
|
|
|
|
- |
For every main control activate will indication on surface electrical control board. |
|
|
|
|
|
|
|
|
3 |
1 set |
Accessories parts: |
|
|
|
|
|
- |
Voltage monitor relay |
|
|
|
|
- |
Compressor Over load Protection Relay Unit |
|
|
|
- |
Main Starting On/Off starter switches |
|
|
|
- |
Electrical branch connation connector set |
|
![](?id=foto_semi_contact_freezer_bw600bf_2854.jpg&w=260")

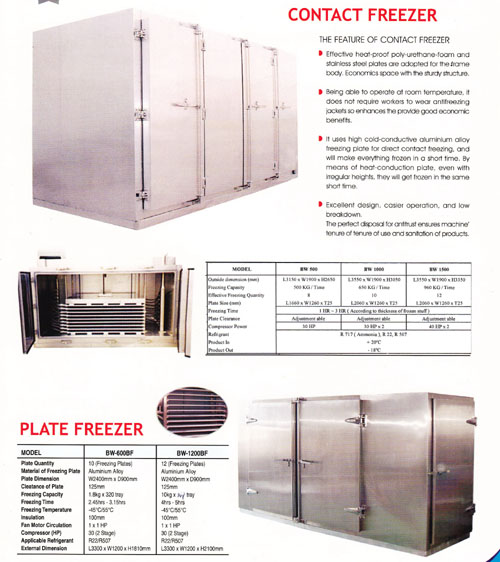

Semi Contact Freezer BW600BF
